Product Description

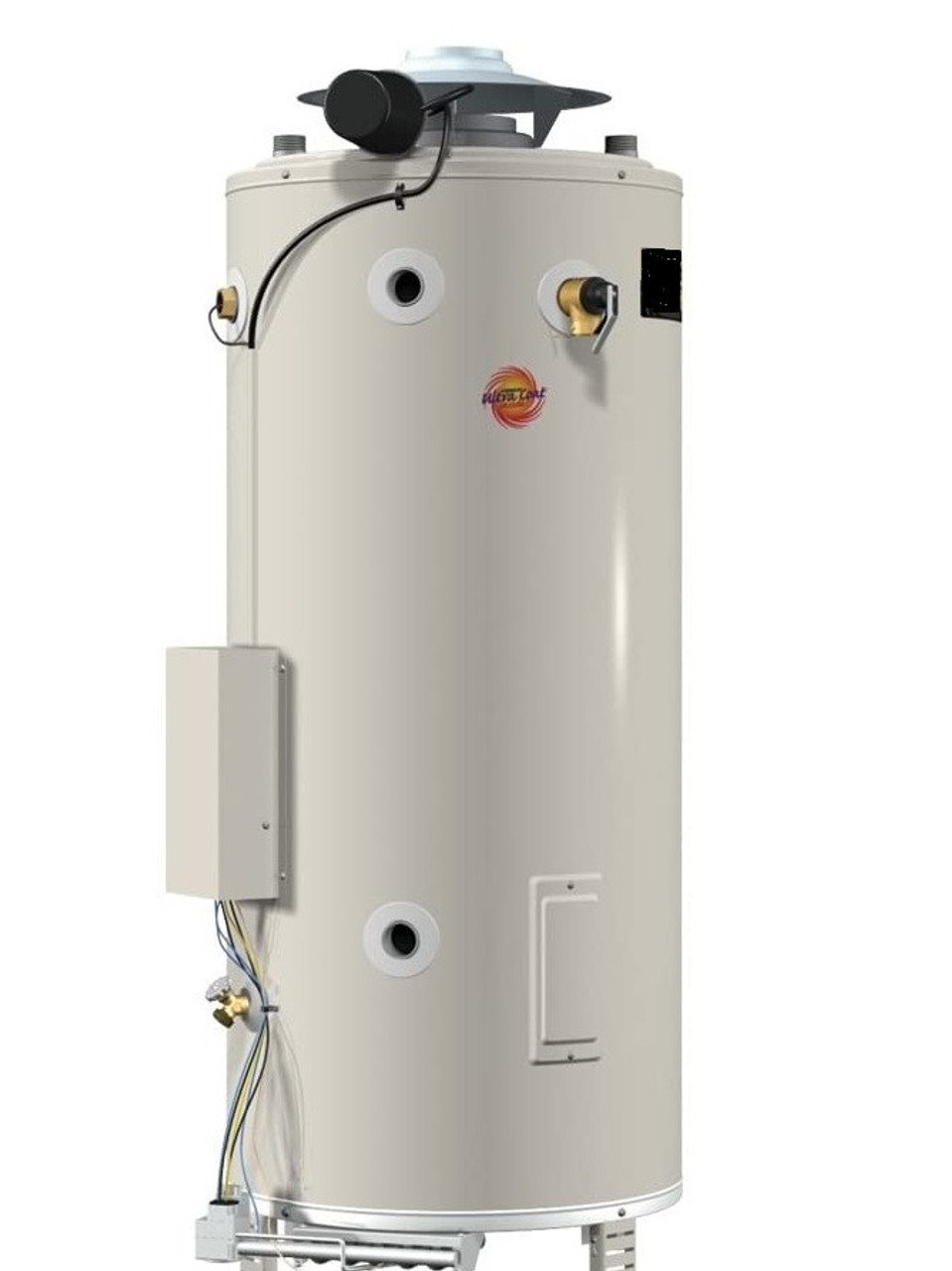

AO-Smith-BTR-305
65 Gallon Commercial Gas 305,000 BTU
Compatible with Eastman 60023 expansion tank
Warranty
3-Year Limited Warranty
MasterFit with Automatic Flue Damper
Features:
The Master-Fit® BTR series with automatic flue damper provides outstanding performance and maximum installation flexibility for both new construction and replacement applications. Multiple options for placement of water connections and low installation clearances are additional installer-friendly features.
THE ELIMINATOR™ SELF-CLEANING SYSTEM
- Designed to significantly reduce or eliminate sediment build-up inside the tank
- Reduced sediment build-up maintains rated thermal efficiency and reduces water heating costs
- Self-cleaning system prolongs tank life
FACTORY-INSTALLED DRAFT DIVERTER AND FLUE DAMPER
- Low-proï¬le draft diverter helps for installation in tight spaces
- Automatic motorized ï¬ue damper helps minimize standby heat loss
THREE WATER CONNECTION OPTIONS FOR ADDEDFLEXIBILITY
- Hot and cold water connections can be made through front, top or rear of unit
- Eliminator™ system operates when cold water is connected through front
PERMAGLAS® ULTRA COAT™ GLASS LINING
- Exclusive process provides superior protection against corrosion
- CoreGard™ anode rods with stainless steel core provide additional corrosion protection
INTERMITTENT ELECTRONIC IGNITION
- Eliminates standing pilot, saves energy
- Includes power ON/OFF switch
- Provides flame failure response in less than one second
FACTORY- INSTALLED, CSA CERTIFIED AND ASME RATED T&P RELIEF VALVE
MAXIMUM HYDROSTATIC WORKING PRESSURE: 160 PSI
80% THERMAL EFFICIENCY
CODES AND STANDARDS
- Design-certified by UL (Underwriters Laboratories), according to ANSZ21.10.3 - CSA 4.3 standards governing storage-type water heaters
- Meets or Exceeds the thermal efficiency and standby loss requirements of the U. S. Department of Energy and current edition of ASHRAE/IESNA 90.1
- Design-certified by Underwriters Laboratories Sanitation to NSF Standard 5 for 180°F (62°C) water
- Optional ASME tank construction available
Please Note: this item is not sold in CA or TX.
AO-Smith-BTR-200
100 Gallon Commercial Gas 199,000 BTU
Compatible with Eastman 60023 expansion tank
Warranty
3-Year Limited Warranty
MasterFit with Automatic Flue Damper
Features:
The Master-Fit® BTR series with automatic flue damper provides outstanding performance and maximum installation flexibility for both new construction and replacement applications. Multiple options for placement of water connections and low installation clearances are additional installer-friendly features.
THE ELIMINATOR™ SELF-CLEANING SYSTEM
- Designed to significantly reduce or eliminate sediment build-up inside the tank
- Reduced sediment build-up maintains rated thermal efficiency and reduces water heating costs
- Self-cleaning system prolongs tank life
FACTORY-INSTALLED DRAFT DIVERTER AND FLUE DAMPER
- Low-proï¬le draft diverter helps for installation in tight spaces
- Automatic motorized ï¬ue damper helps minimize standby heat loss
THREE WATER CONNECTION OPTIONS FOR ADDEDFLEXIBILITY
- Hot and cold water connections can be made through front, top or rear of unit
- Eliminator™ system operates when cold water is connected through front
PERMAGLAS® ULTRA COAT™ GLASS LINING
- Exclusive process provides superior protection against corrosion
- CoreGard™ anode rods with stainless steel core provide additional corrosion protection
INTERMITTENT ELECTRONIC IGNITION
- Eliminates standing pilot, saves energy
- Includes power ON/OFF switch
- Provides flame failure response in less than one second
FACTORY- INSTALLED, CSA CERTIFIED AND ASME RATED T&P RELIEF VALVE
MAXIMUM HYDROSTATIC WORKING PRESSURE: 160 PSI
80% THERMAL EFFICIENCY
CODES AND STANDARDS
- Design-certified by UL (Underwriters Laboratories), according to ANSZ21.10.3 - CSA 4.3 standards governing storage-type water heaters
- Meets or Exceeds the thermal efficiency and standby loss requirements of the U. S. Department of Energy and current edition of ASHRAE/IESNA 90.1
- Design-certified by Underwriters Laboratories Sanitation to NSF Standard 5 for 180°F (62°C) water
- Optional ASME tank construction available
Please Note: this item is not sold in CA or TX.
